JinSeal Not Only Supply Various Kinds of Sealing Gaskets and Sealing sheets but Also Provide Raw Materials for Manufacturing Sealing Gaskets. in This Way, We Are a One-stop for Our Clients by Providing a Full Range of the Fillers, Strips /windings and Inner and Outer Rings in Many Materials.
We Provide a Full Range of Filler Material for Spiral Wound Gaskets:

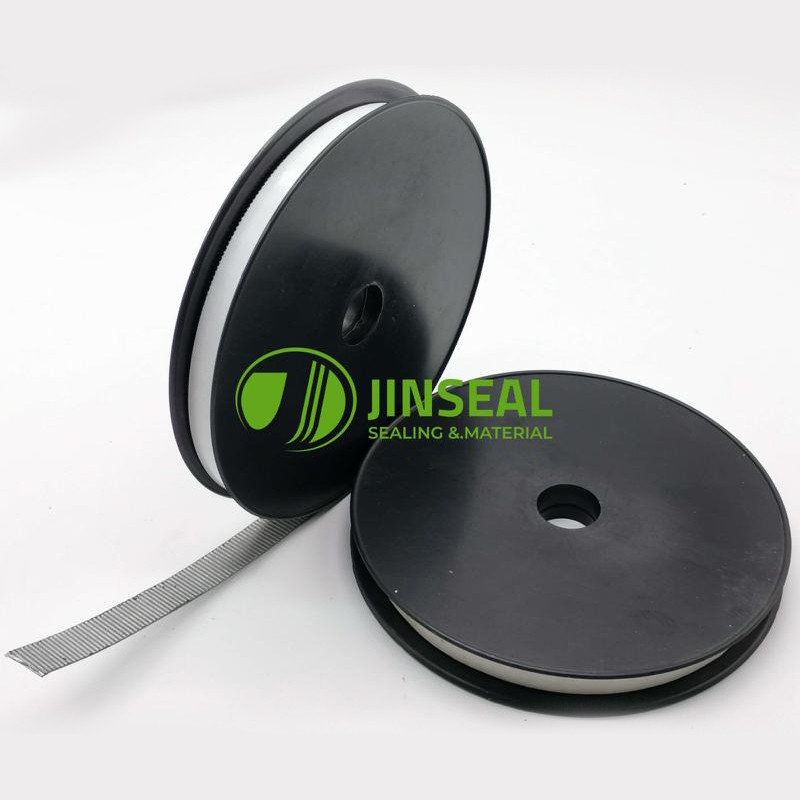

It’s the Most Common Material for Manufacturing Swgs and Made from High Purity Graphite with No Fibers or Binder. the Graphite Tape Provides Outstanding Performance over a Wide Temperature Range.
It Has All the Characteristics of PTFE and It’s Soft to Manufacture the Spiral Wound Gasket. It is Able to Withstand High Pressure Up to 210 Bar and High Thermal Stability Up to 315℃. the Tape is Suitable for Chemical Environments.
It is Cut from Mica Roll and Has Quite Exceptional Flame-resistant Characteristics, Electrical Insulation and Chemical Resistance. It is used in the Environment of Super High Temperature.
We Also Have Other Filler Materials for Spiral Wound Gaskets Like Non-asbestos Filler, Ceramic Fiber Filer, Expanded PTFE Filler and Etc. The Dimension of Filler Material is Available in 5.3~6.0mm for Width and 0.2~0.8mm for Thickness. Please Contact JinSeal Technical Team for More Information or Advice.

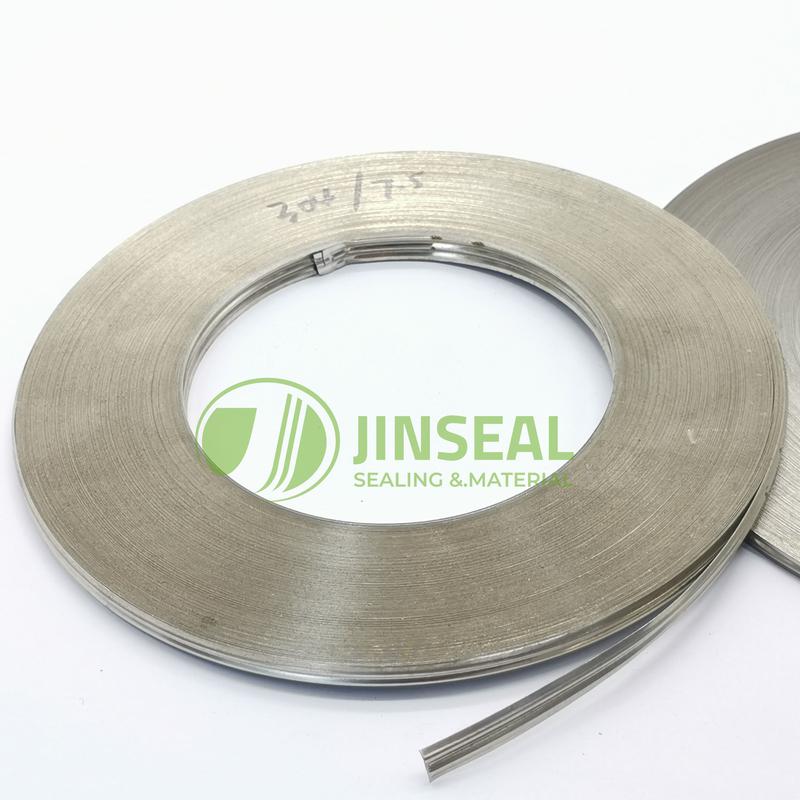

Winding Material for Spiral Wound Gaskets Are Always Supplied in Stainless Steel Strips or Hoops.
For Example SS304, SS316, SS321, SS347, Inconel, Monel, Ti, Duplex Super Stainless Steel. We Always Provide the Windings in Flat or V-shaped / W-shaped for Our Clients to Manufacture 3.2mm Thick or 4.5mm Thick Spiral Wound Gasket.
Rings for Spiral Wound Gaskets Means Inner Rings and Outer Rings for Spiral Wound Gaskets. Outer Ring is Always with Inner Trough Machined Compared Common Flat Metallic Gaskets While Inner Ring is with Groove on the Outer Edge. We Supply Different Material for the Rings As Well As the Flat Metal Ring.
