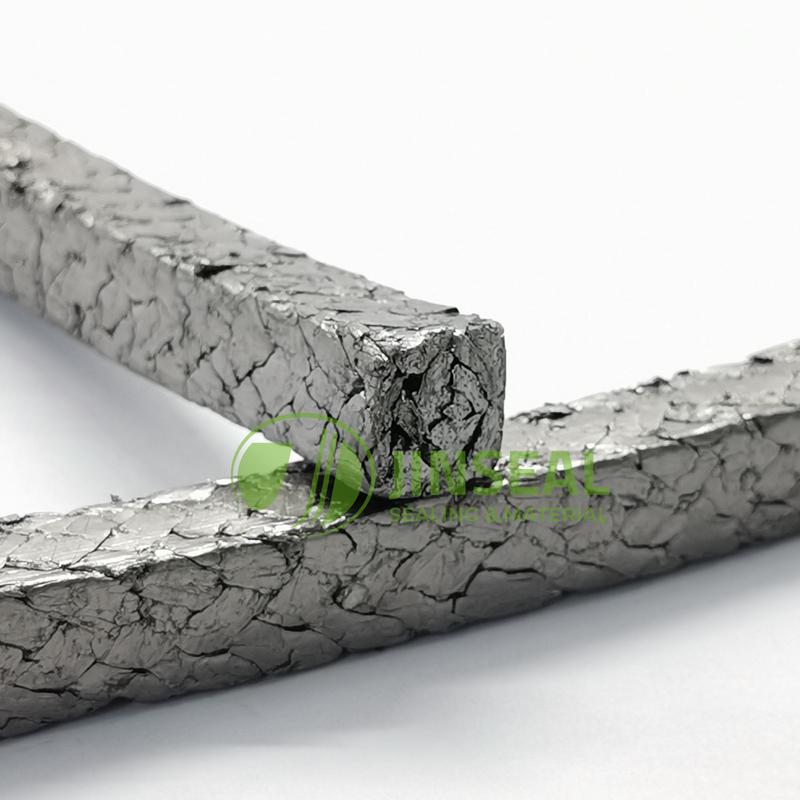

Flexible Expanded Graphite Packing is Made by Weaving Flexible Graphite Thread Through The Core. Expanded Graphite Packing Has the Advantages Of Good Self-lubrication and Thermal Conductivity, Small Friction Coefficient, Strong Versatility, Good Flexibility, High Strength, And Protection for the Shaft. According to Different Requirements, It Can Be Strengthed by Carbon Fiber, Copper Wire, 304, 316l, Inconel Wire, and Other Materials.
JinSeal, a Leading Flexible Graphite Packing Manufacturer, Has Been Involved in Graphite Packing Manufacturing for Over 20 Years. Our Graphite Rope Packing is Used in a High-Temperature Environment. It Contains a Special High-Temperature Impregnation As Well As a Corrosion Inhibitor. Due To the High Wire Content, It Can Be Used Without End Rings.
Expanded Graphite Packing is Braided with Flexible Graphite Yarn The Packing Can Provide Seal in Hot Water, High Temperature & Pressure Environment. Flexible and Adaptable Packing is Especially Suit- Able for Applications with High Pressure and High-Temperature Services. As a Standard Packing, Expanded Graphite Packing is Suitable for Almost Every Industrial Sector, Especially Power Plants and the Chemical Industry.

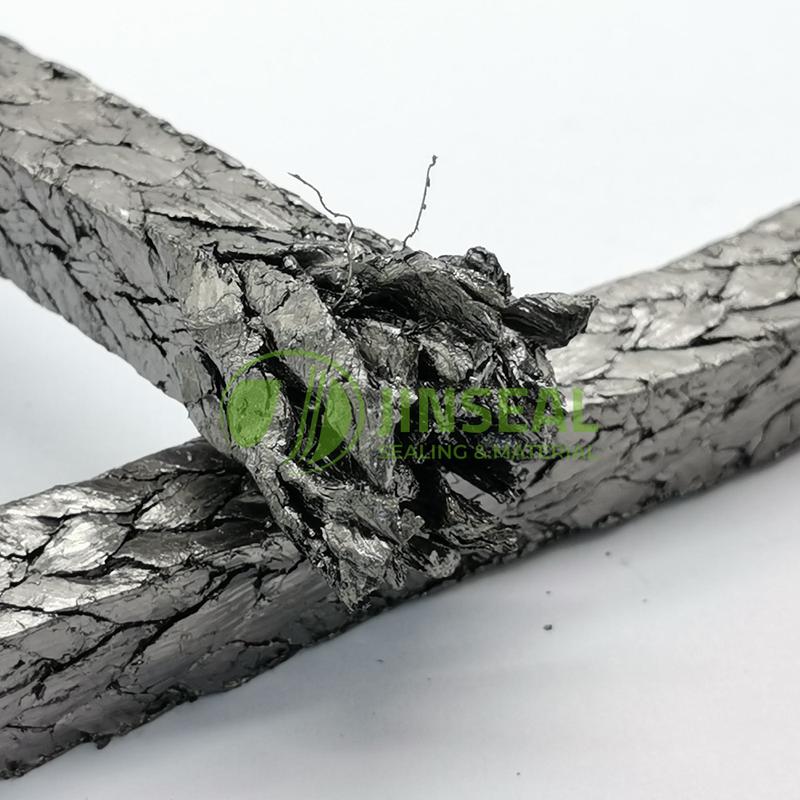

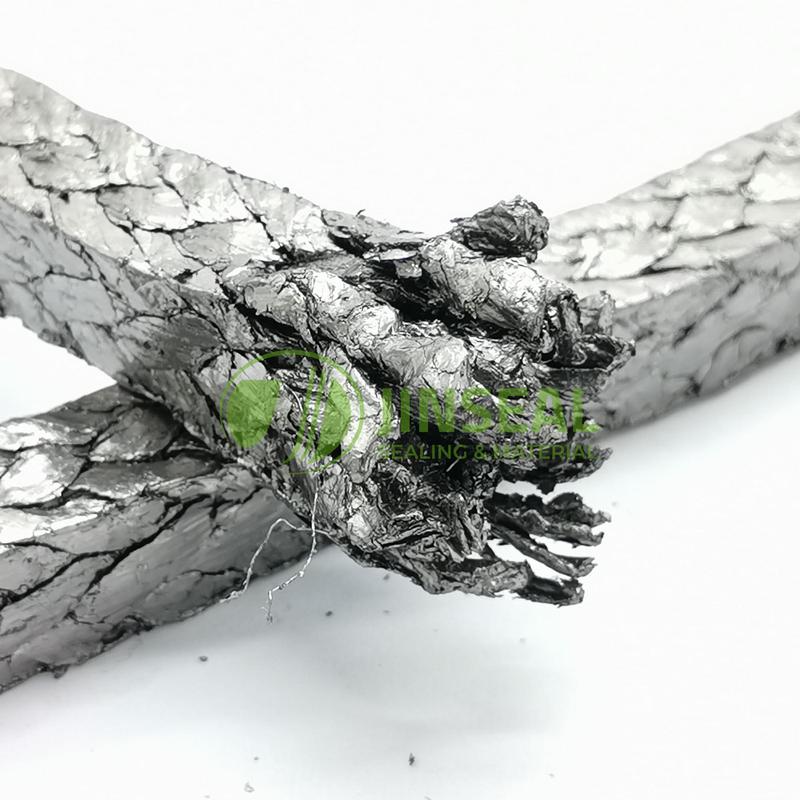

Expanded Graphite Packing with Inconel Wire Can Be Used in Valves and Rotary Applications, High Temperature and High-Pressure Conditions. The Braided Graphite Packing is a Pure Graphite Compression Packing with Inconel Wire Running Down the Center of Each Strand and the Strands Are Braided into a Required Square Cross Section.
This Packing Can Stand Higher Pressure Than the Pure Graphite Packing As It’s Braided with Inconel Wire Which Increases the Friction While the Gland Packing is Working.
It’s the Best Packing for High Temperature and Pressure Control and Block Valves, Lp Steam Turbine Valve, Condensate Line Valves, Manually Valves, Power Recovery Valves, Sootblowers, Hydropulpers, Agitators and Mixers, Refiners, High & Low-Pressure Feeders in Power Plants, Refineries & Petrochemical Plants, Pulp and Paper Industry, Wastewater Treatment, Marine Services and Sugar Plants, Etc.
JPS-FG20 is Braided from High Purity Expanded Graphite Material (c-content >99 %) over Knitted with Inconel Wire. It Contains a Special High-Temperature Impregnation As Well As a Corrosion Inhibitor. Due To The High Wire Content, It Can Be Used Without End Rings. The Graphite Gland Packing is Braided with Graphite Yarn with Corrosion Inhibitor and Fiberglass Reinforced and Inconel Wire Also Outside Braided Inconel Wire Mesh Again.
SP-CB30 is Braided Packing Made from Expanded Graphite, with Reinforced Corners Made of Carbon Fiber, Reinforced with Textile Fibers. This Packing Solution is Elastic, Extrusion Resistant Packing for Applications with High-temperature/high-pressure. Particularly Appropriate for Power Plants and Chemical Applications.
The Carbon Fiber Corners Make the Gland Packing Three Times More Resistant to Extrusion and Also Increase the Pressure Handling Capabilities when Compared to Non-reinforced / General Use Flexible Graphite Packing.
the Graphite Packing Can Be Used in Many Demanding Applications for Dynamic or Static. It’s Particularly Suitable for High Temperature and High-Pressure Service in Valves, Pumps, Mixers and Agitators, Expansion Joints, Etc.
| Item No. | JSP-FG11 | JSP-FG12 | JSP-FG13 | JSP-BC30 |
| Fiber Material | Graphite | Graphite | Graphite | Carbon |
| Additions | Cotton | SS Wire | Inconel Wire | Graphite |
| Lubricating Agent Silicone Free | Yes | Yes | Yes | Yes |
| Density (g/cm³) | 1.1 | 1.35 | 1.35 | 1.35 |
| T Min. (°C) | -200 | -200 | -200 | -200 |
| T Max. (°C) | 650 | 650 | 650 | 550 |
| PH | 0-14 | 0-14 | 0-14 | 0-14 |
| Pressure P (Bar) Rotary Pumps |
|
|
|
|
| Pressure P (Bar) Piston Pumps | 15 |
|
| 25 |
| Pressure P (Bar) Valves | 250 | 350 | 350 | 450 |
| Speed (M/S) | 2 | 2 | 2 | 2 |
JinSeal Also Supply Different Material & Type Braided Packing for Different Applications & Condition & Gland Packing Removal Tools Set to Install & Replace in Pumps, Valves ect.
