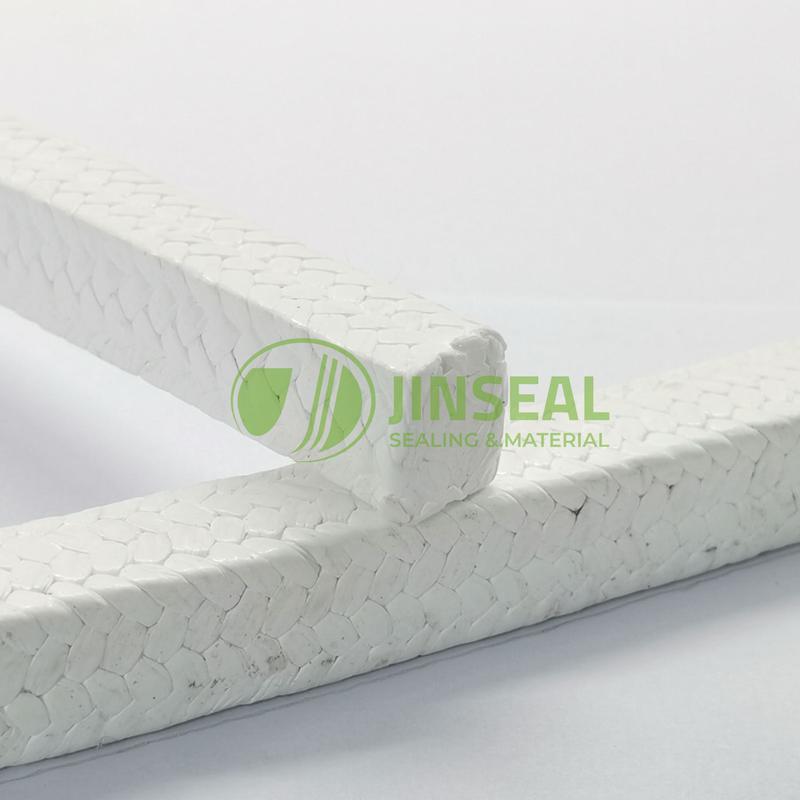

PTFE Packing is Made from Pure PTFE Fiber. Because It is Solid Braided and Has Flexible Adjustability, It Can Be Well-matched With the Shaft and Stuffing Box. PTFE Gland Packing is Good at Handling Aggressive Fluids AndWhen There's a Leakage, Braided Packing is Easy to Be Adjusted And Can Keep the Pump Fully Functional Compared With Mechanical Seals Which Need to Be Taken out the Pump To Repair.
JinSeal PTFE Packing is a Self-lubricating Chemically Inert, Non-toxic, and It's Braided with 100% Pure PTFE Yarn. It Is Carefully Impregnated Before Braiding to a Formed Packing. PTFE Packing Can Be Used in Corrosive Chemicals, Solvents, Oils. It is Widely Used in the Food Industries, the Pharmaceutical Industry.
PTFE Packing is a Kind of Compression Packing Braided with Pure Sintered, High-Performance PTFE-multifilament- Yarns with Thorough PTFE-impregnation Treated with a Special Lubricant. It Still Keeps PTFE’s Characteristics Which is Well Known for Its Outstanding Resistance to Chemical Medium, Low Coefficient of Friction and Wide Temperature Tolerance. PTFE Packing’s Flexibility Make It to Be a Popular Choice for Those Difficult Severe Environments Where Strong Solvents or Corrosive Chemicals Exist.
PTFE Packing is a Braided PTFE Packing Yarns with Silicon Oil Lubrication with better self-lubrication to reduce friction and improve equipment life and efficiency
Pure PTFE Packing
Pure PTFE Packing is a Diagonally Braided PTFE Packing with Silicon Oil-free Lubrication.
JinSeal PTFE Gland Packings Are a Good Seal for Valves and Pumps. PTFE Compression Gland Packings Are Suitable to Be Used in a Wide Range of Applications Including Food Production, Pharmaceutical Industry, Chemical Processing, Water Industry and Hospitals
| Item No. | JSP-PT10 | JSP-PT20 | Item No. | JSP-PT10 | JSP-PT20 |
| Fiber Material | PTFE | PTFE |
|
|
|
| Additions | PTFE |
| PH | 0-14 | 0-14 |
| Lubricating Agent Silicone Free | Yes | No | Pressure P (Bar) Rotary Pumps | 10 |
|
| density (g/cm³) | 1.7 | 1.7 | Pressure P (Bar) Piston Pumps |
| 500 |
| T Min.(°C) | -100 | -200 | Pressure P (Bar) Valves |
| 500 |
| T Max.(°C) | 280 | 290 | Speed (M/S) | 10 | 2 |
