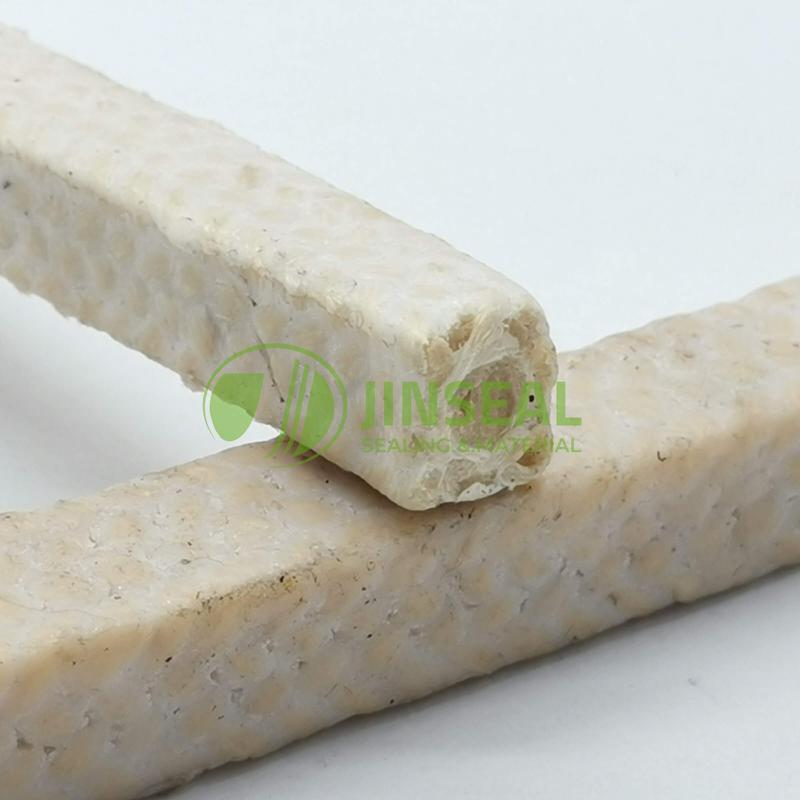

Ramie Braided Packing is Made of High-Level Ramie Yarn. Ramie Packing Can Be Divided into Two Types According to the Different Working Conditions: Ramie Braided Packing Impregnated PTFE Suspension and impregnated Graphite.
The Ramie Fiber Braided Packing Has Low Friction, Good Lubricity and Corrosion Resistance for Bed Tail Pipe, Rudder Column and Tail Shaft Lining. This Style Package is Also Used in the Pulp and Paper, Water/Wastewater and Mining Industries.
Shaft & Stuffing Box Packing
Stabilizer | Bilge pumps | Marine Rudder
Centrifugal | Rotary | Reciprocating Pumps
Density: 1.25g/cm³
pH: 4-12
Linear Speed: 10M/S
Temperature：-50°C to 130°C
Material：Ramie Fiber with PTFE/Graphite
Core：Red Silicone Rubber
Square | Round
Trapezoidal | Rectangular
Valve: 100 Bar
Rotary Pumps: 50 Bar
Reciprocating Pumps: 80 Bar
Ramie Fiber Packing Order Size
| Inch | MM | Inch | MM |
| 1/8" | 3 | 3/8" | 10 |
| 1/4" | 6.35 | 3/4" | 19 |
| 1/2" | 12.7 | 1" | 25.4 |
